WHAT IS EARTHING??? WHY IT IS DONE???WHAT IS GOOD EARTHING???


WHAT IS EARTHING AND WHY IT IS DONE

 Earthing is an electrode embedded in the soil to provide path to the leakage current.

 Earthing is provided to :

a) To save Human life from shock and also probability of death.

b) To Protect Large Buildings from Atmospheric Lightening.

c) To protect all machines and to maintain line voltage.

 What is a Good Earthing

• A Good Earthing is that earthing which gives very low resistance to the flow of heavy current.

• The Potential at earth is Zero

 TYPES OF EARTHING

1. Pipe Earthing

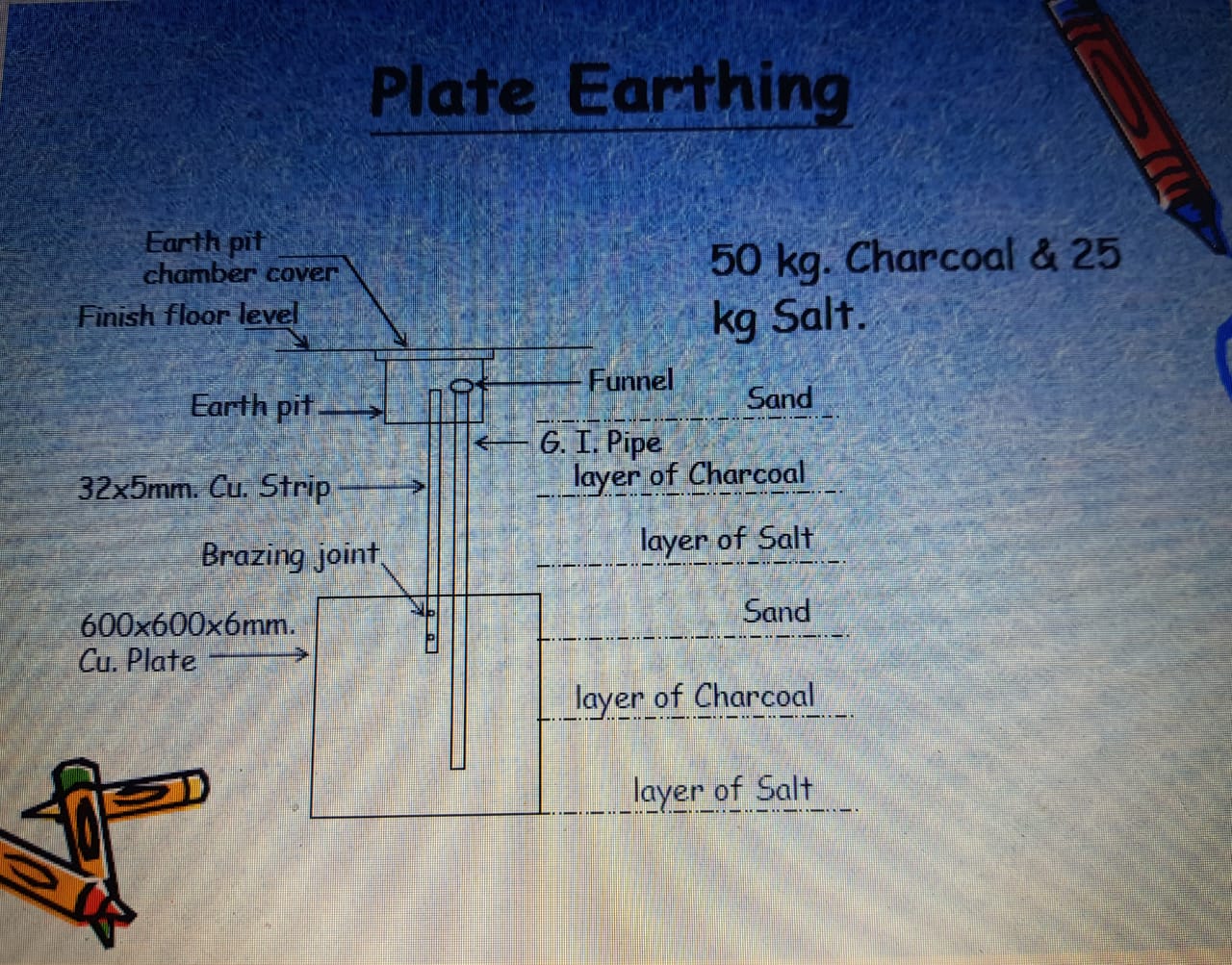

2. Plate Earthing




HOW DO WE GET A SHOCK

Human Body is a conductor. When a Live Wire touches the human body, current completes its path through body and earth resulting in a shock. The muscular functions of the body are paralyzed due to the current action on the nervous system causing breathing problems, severe burns, and resulting in death.

PRECAUTIONS TO BE TAKEN TO PREVENT ELECTRIC SHOCK :

• Care in handling all electrical apparatus and equipment.
• Never use appliances which are faulty.
• Replace immediately broken switches and plugs etc.
• All the metallic parts of the appliances are properly earthed.
• Never put a bare wire in a plug. Always use a Plug Top.
• Always use proper insulated Hand Tools.
• Use correct rating of Fuses.

Electrical Safety demands a Good Earthing

Hence always keep earth connections in good conditions..............///
